8 Optional parts: features and the user's choices

Goal: let the user choose what to install. The program itself is always installed; the documentation is offered and ticked; the samples are offered but not ticked; a diagnostics part is hidden and installed only on request.

8.1 Features#

A feature is a part of the product the user can choose: a line in the installer's tree with a title, a description and a tick. Every file belongs to exactly one feature; a feature holds as many files as you like.

8.2 The source#

# tutorial 08: hello.toml
format = 1

[package]
name = "Hello"
manufacturer = "Example Software"
version = "$(VERSION)"
arch = "x64"
upgrade-code = "{3F2A6C1D-8B4E-4F7A-9C2D-5E6F7A8B9C0D}"
ui = "features"
license = "LICENSE.txt"

[define]
VERSION = "1.6.0"

[feature.Main]
title = "Hello"
description = "The program itself."
required = true

[feature.Documentation]
title = "Documentation"
description = "The guide, in the docs folder."

[feature.Samples]
title = "Samples"
description = "Example files to try Hello with."
level = 2

[feature.MoreSamples]
title = "More samples"
description = "Samples in sub folders."
parent = "Samples"
follow-parent = true

[feature.Diagnostics]
title = "Diagnostics"
hidden = true
level = 3

[dir.INSTALLDIR]
path = "$(ProgramFiles)/Hello"
feature = "Main"

[dir.DocsDir]
path = "$(INSTALLDIR)/docs"
feature = "Documentation"

[dir.SamplesDir]
path = "$(INSTALLDIR)/samples"
feature = "Samples"

[dir.MoreSamplesDir]
path = "$(INSTALLDIR)/samples/sub"
feature = "MoreSamples"

[file.Hello]
dir = "INSTALLDIR"
source = "dist/hello.exe"

[files.DocFiles]
dir = "DocsDir"
glob = "dist/docs/**"

[files.SampleFiles]
dir = "SamplesDir"
glob = "dist/samples/*.txt"

[files.MoreSampleFiles]
dir = "MoreSamplesDir"
glob = "dist/samples/sub/*.txt"

[file.Readme]
dir = "INSTALLDIR"
source = "dist/readme.txt"
feature = "Diagnostics"

[shortcut.StartMenu]
dir = "Programs"
name = "Hello"
target = "file:Hello"

8.3 Declaring features: [feature.ID]#

Feature IDs share one name space with dirs and files: Documentation the feature and DocsDir the folder must have different IDs (rubrapack says so with RP1301 otherwise).

8.4 Putting files in features: feature#

• On a dir: every file in that folder belongs to the feature - DocsDir puts guide.txt in Documentation, SamplesDir puts sample1.txt in Samples.
• On a file or a file group: that file (or group) belongs to it, whatever its folder - Readme is in INSTALLDIR, a folder of Main, but belongs to Diagnostics.

A dir does not pass its feature on to the dirs below it: MoreSamplesDir names its own. As soon as the source declares one feature, everything installed needs one; rubrapack stops with RP1202 naming what has none.

8.5 What the user sees#

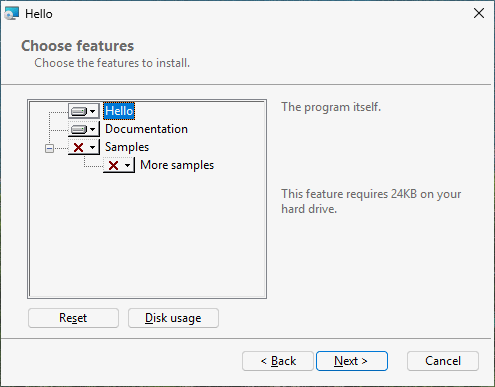

With ui = "features", after the license and the install folder comes "Choose features": a tree

[x] Hello                     (cannot be turned off)
[x] Documentation
[ ] Samples
      [ ] More samples        (follows Samples)

Each line has a menu: "Will be installed on local hard drive", "Entire feature will be installed on local hard drive", "Entire feature will be unavailable". Selecting a line shows its description and the disk space it needs; "Disk Usage" shows the space on every drive. (These texts come from Windows and stay English.) Diagnostics does not appear.

A default installation (double-click, Next, Next, ...) installs Hello and the documentation.

8.6 Choosing from the command line#

Features are chosen with properties, so a silent installation can choose too:

Feature IDs are case-sensitive and separated by commas: ADDLOCAL=Samples,Diagnostics. required only binds the tree: REMOVE=Main on the command line is still obeyed (that is how Windows Installer works).

8.7 Changing the choice later#

After installation, Installed apps offers Modify for Hello; it opens the installer's maintenance page with Change, Repair and Remove. Change shows the same tree with what is installed ticked; the user adds or removes parts. From the command line on an installed product:

msiexec /i hello.msi ADDLOCAL=Samples
msiexec /i hello.msi REMOVE=Samples

8.8 What happened inside#

C:\work\hello> rubrapack inspect hello.msi Feature
Feature	Feature_Parent	Title	Description	Display	Level	Directory_	Attributes
...
Diagnostics		Diagnostics		0	3		0
Documentation		Documentation	The guide, in the docs folder.	3	1		0
Main		Hello	The program itself.	1	1		16
MoreSamples	Samples	More samples	Samples in sub folders.	7	1		2
Samples		Samples	Example files to try Hello with.	5	2		0

• Display orders the tree (odd numbers, in the order of the source); 0 hides the feature.
• Level is the level; Windows installs a feature by default when its level is not above the property INSTALLLEVEL, which is 1.
• Attributes are bit flags: 16 means "may not be made absent" (required), 2 "follow the parent".

The FeatureComponents table ties each component - each file - to its feature:

C:\work\hello> rubrapack inspect hello.msi FeatureComponents
...
Documentation	C_a10be66379e69940a2e0
Main	C_185f8db32271fe25f561
Samples	C_a5674982edf0797da30f
...
